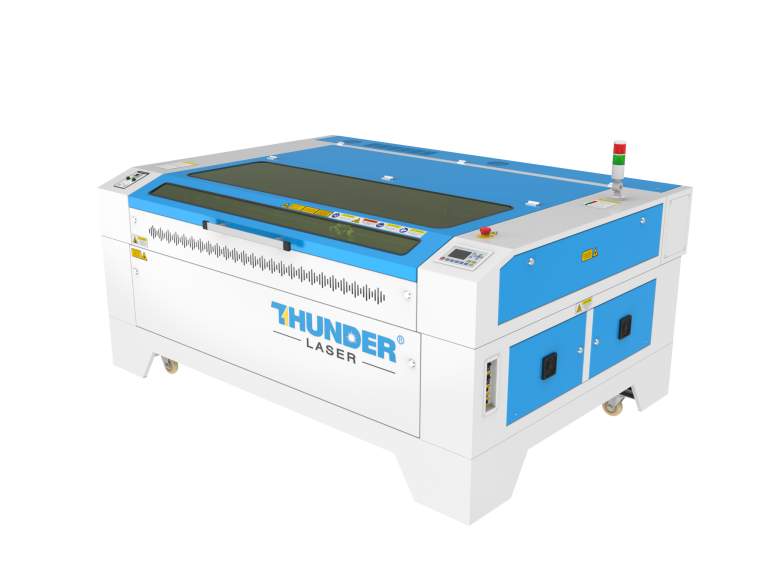

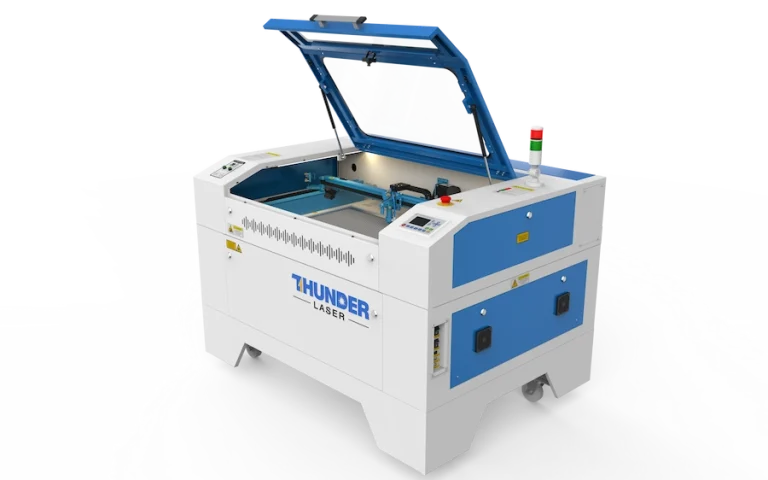

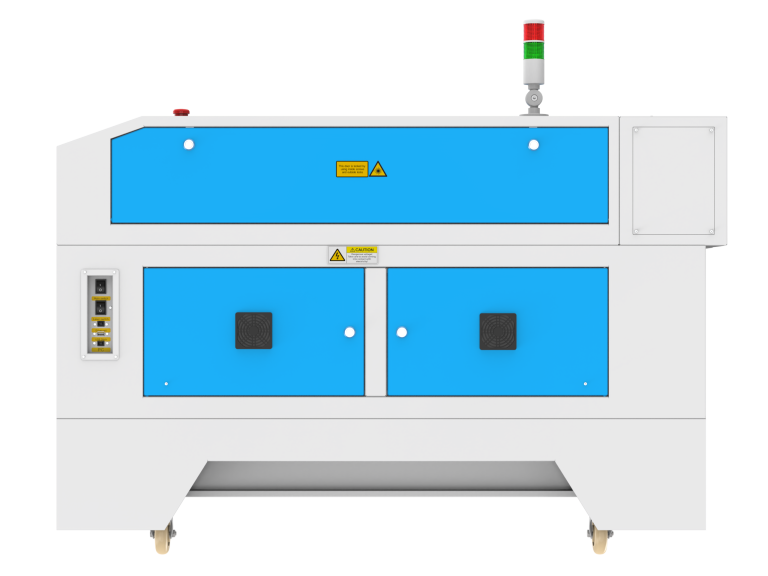

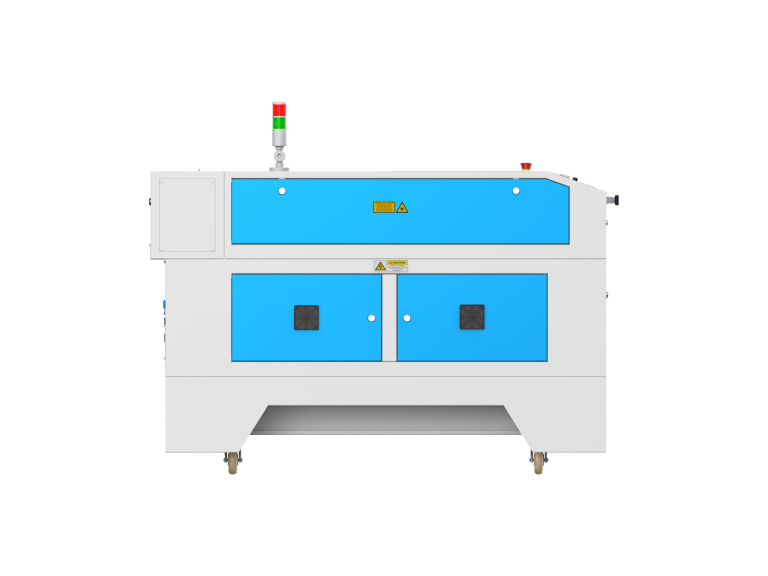

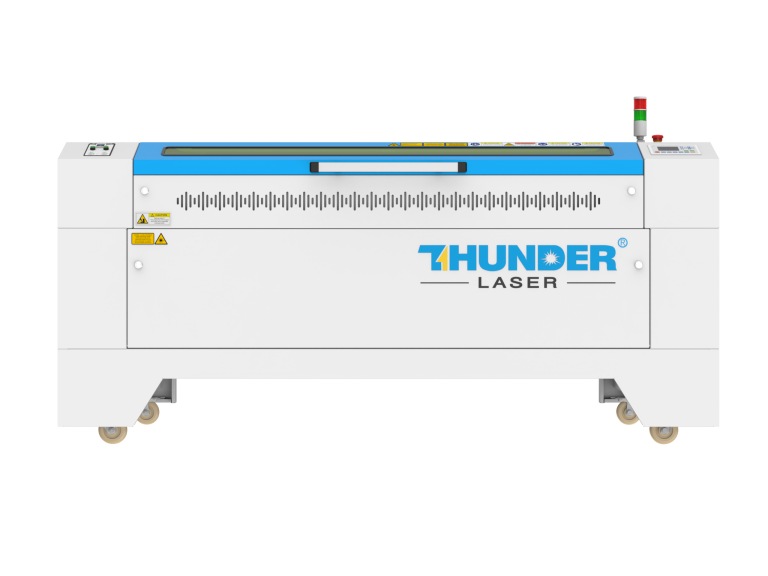

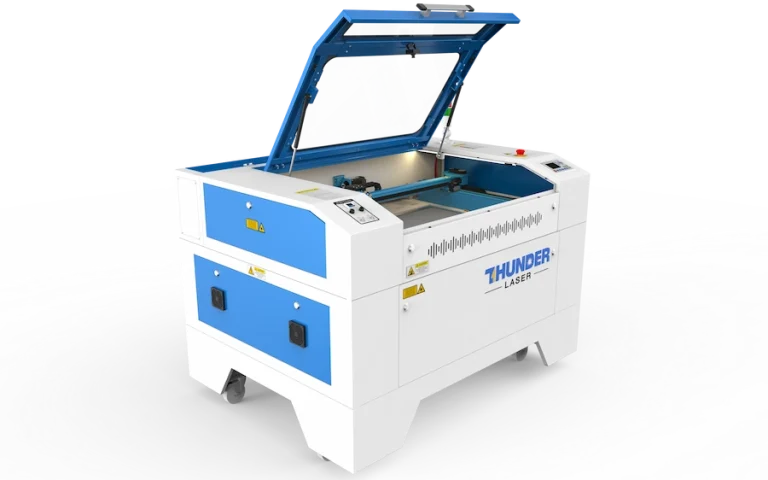

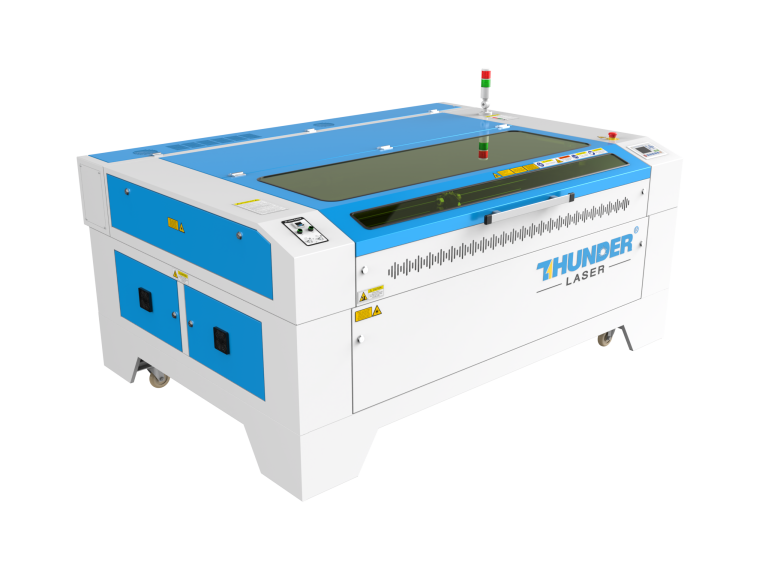

Nova Plus is Thunder Laser’s next-generation CO₂ laser cutting and engraving machine, designed to deliver exceptional precision, efficiency, and versatility. Equipped with an advanced RF metal tube, Nova Plus offers unmatched engraving accuracy and cutting performance, making it ideal for a wide range of applications.
From intricate engraving on wood, acrylic, and leather to precise cutting of complex shapes, Nova Plus empowers businesses, designers, and creators to achieve exceptional results. Explore new possibilities and take your projects to the next level with the power of Nova Plus.
Nova Plus is Thunder Laser’s next-generation CO₂ laser cutting and engraving machine, designed to deliver exceptional precision, efficiency, and versatility. Equipped with an advanced RF metal tube, Nova Plus offers unmatched engraving accuracy and cutting performance, making it ideal for a wide range of applications.
From intricate engraving on wood, acrylic, and leather to precise cutting of complex shapes, Nova Plus empowers businesses, designers, and creators to achieve exceptional results. Explore new possibilities and take your projects to the next level with the power of Nova Plus.

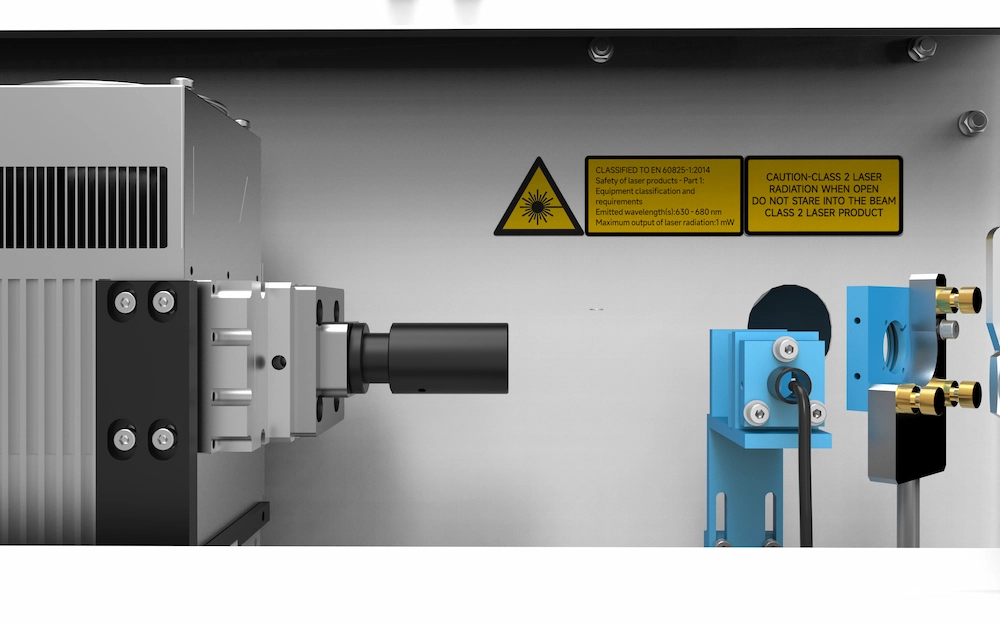

With an impressive 2000 DPI resolu-
tion and an extended lifespan of up to
10,000 hours, the Metal RF Laser Tube
delivers exceptionally high and stable
laser beam quality. Offering superior
performance and cost efficiency com-
pared to traditional glass tubes.

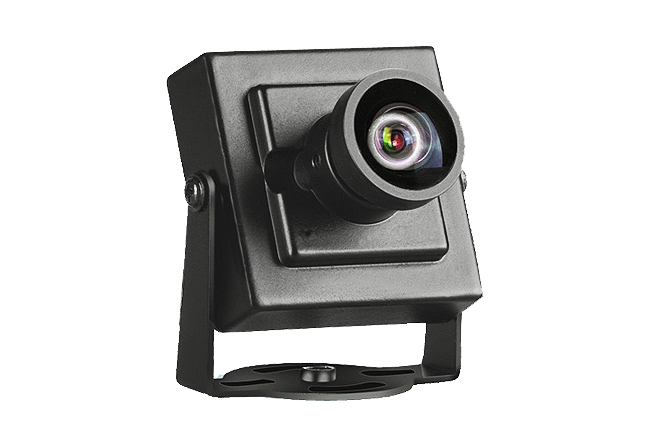

Equipped with a standard 5M camera,
Nova Plus ensures a crystal-clear and
precise view of your workspace. It sig-
nificantly improves material alignment
and design accuracy, making it ideal
for handling intricate engraving or cut-
ting projects with ease.

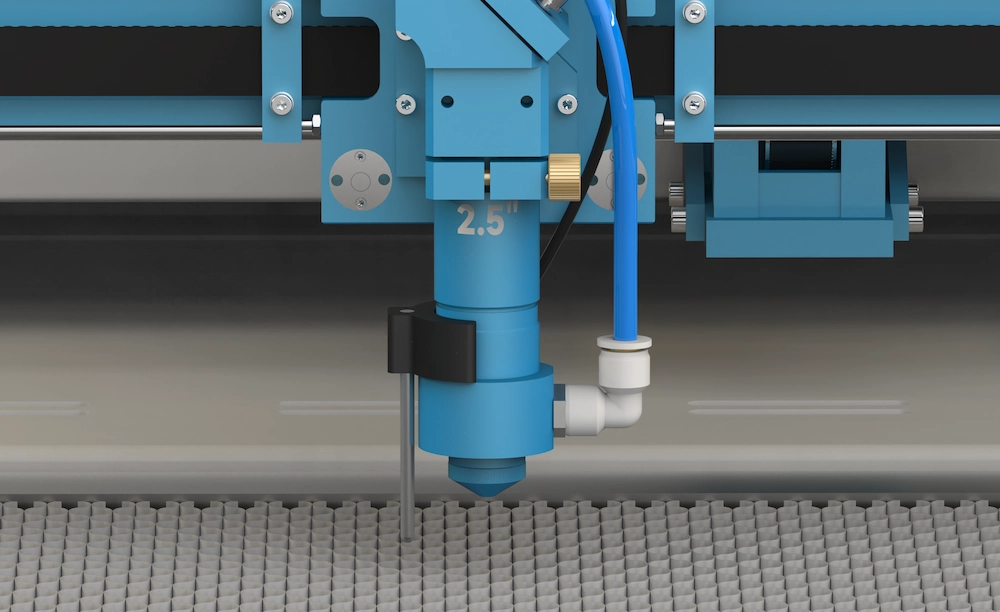

Effortlessly achieve precise focus
anywhere within the laser head’s
reach. This touch-based method is
unaffected by environmental factors
or uneven material surfaces, making
it perfect for precise focusing even on
transparent materials.

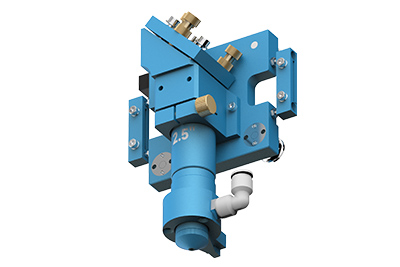

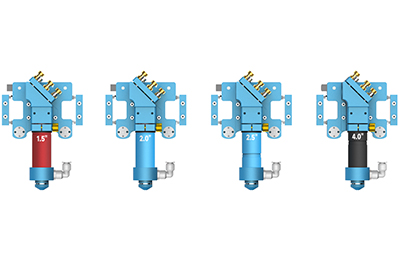

A high-quality laser head ensures su-
perior laser beam output. Including
the standard 2.5-inch lens, we offer
four interchangeable lens sizes: 1.5
inches,2 inches, 2.5 inches, and 4
inches. You can select the lens that
best meets the requirements of your
laser project.

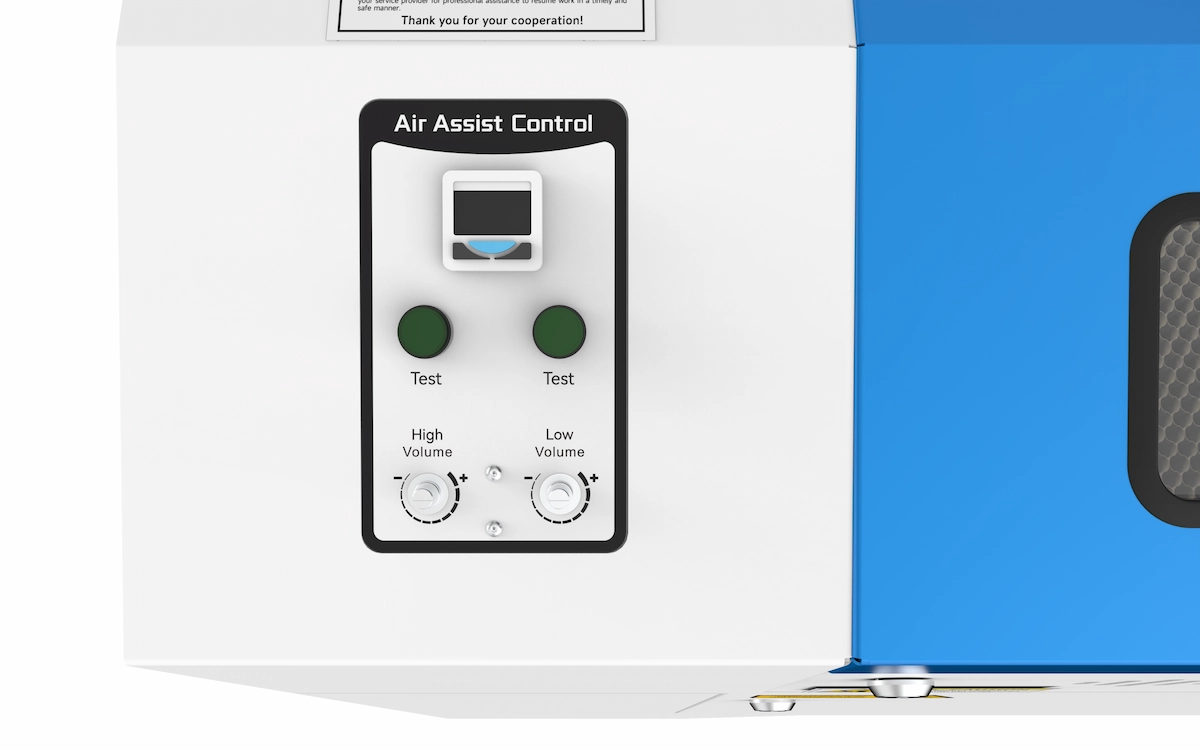

The Air Volume Sensor provides re-
al-time air pressure monitoring, allow-
ing you to adjust the air assist accord-
ingly. Together, these features main-
tain stable air pressure to prevent ma-
terial combustion caused by low
pressure, safeguarding both the ma-
chine and the operator.

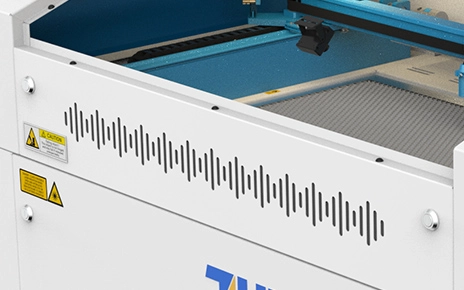

With an air vent area of up to 15,080
cm², the enhanced air intake facili-
tates better airflow, effectively reduc-
ing smoke and dust during laser pro-
cessing. This helps create a cleaner
work environment and ensures more
stable processing results.

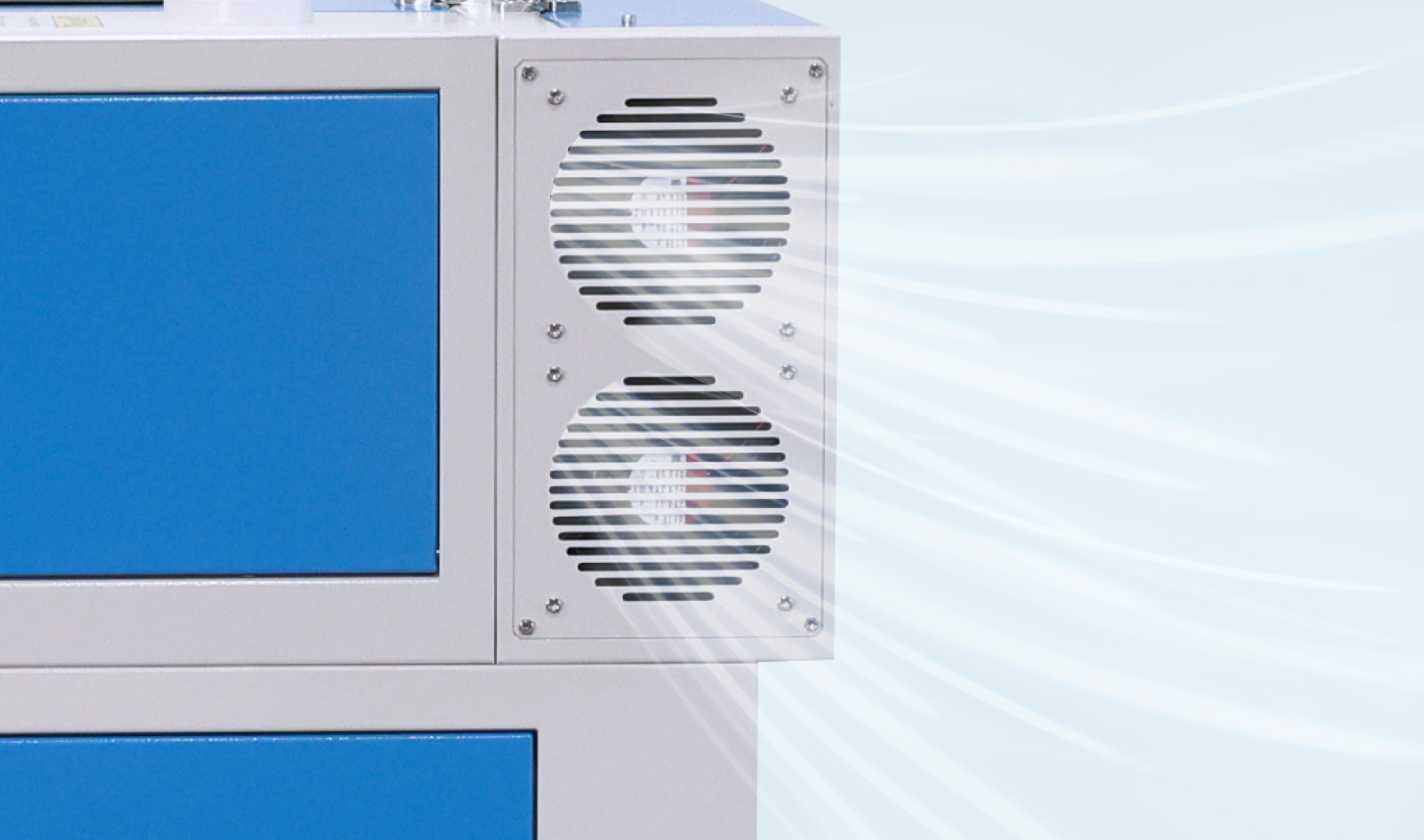

Air Cooling
2.5 Laser Head

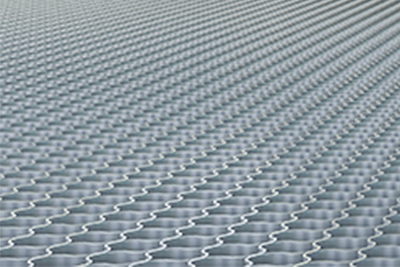

Honeycomb/Knife Bed

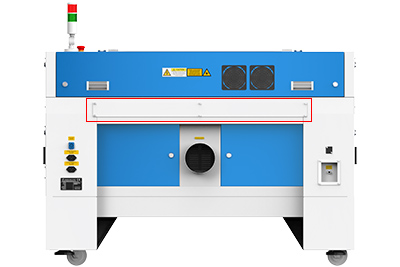

Pass-through Doors

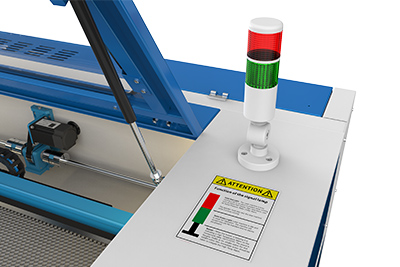

Alarm Lamp
Touch Screen Panel
Air Pump
Exhaust System
Tool Kit
Cleaning Kit
| Specification | Nova Plus 24 | Nova Plus 35 | |||
| Engraving / Working Area | 600*400*155mm (23.6″ x 15.7″ x 6.1″) | 900*600*225mm (35.4″ x 23.6″ x 8.9″) | |||
| Max Part Size | Pass through closed: 615*470*155mm (24.2″ x 18.5″ x 6.1″) Pass through open: 610*∞*20mm (24.0″ x ∞ x 0.8″) |
Pass through closed: 931*651*225mm (36.6″ x 25.6″ x 8.9″) Pass through open: 960*∞*20mm (37.8″ x ∞ x 0.8″) |
|||
| Machine Size | 1120*865*682mm (44.1″ x 34.1″ x 26.9″) | 1520*1152*1115mm (59.8″ x 45.3″ x 43.9″) | |||
| Laser Wattage | 60W RF Metal Tube | ||||
| Internal Memory | Store multiple files up to 1 GB. Engrave any file size. | ||||
| Laser Source | CO2 RF Matel Tube, Unmatched laser precision. Average lifespan: 10000 working hours | ||||
| Electrical Requirements | Standard 110v or 220v AC 60Hz Single Phase, dedicated 15A circuit | ||||
| Air Assist | Dual air assist and air volume meter. | ||||
| Software | LightBurn software optional; supports Windows, Mac, and Linux | ||||
| Red Dot Pointer | Shows where laser will fire; easy positioning | ||||
| Camera System | Comes with over-head camera as standard | ||||
| Operating Modes | Optimized raster, vector, or combined modes | ||||
| Easy Adjustable Home | New home position can be set by hand for items not easily placed in the top corner | ||||
| Motion Control System | Engraving speeds up to 1,200mm/s | ||||
| Resolution | Up to 1000dpi with included 2.5″ head or 2000dpi with 1.5″ head | ||||
| Safety | Open cover protection, air assist protection, heat alarm system | ||||
| Auto Focus | Cone-head touch auto focus system | ||||
| Cooling | Air Cooling | ||||
| Motorized Table | Includes removable honeycomb and solid metal blade (knife-style) bed | ||||
| Laser Heads | 2.5″ Head / Lens included; Optional 1.5″, 2.0″, and 4.0″ heads available. | ||||
| TL-Timer (Smart Board) | Relay switch controls for red and green alarm lights, air assist system, exhaust system, and automatic power supply for rotary attachment. | ||||
| Warning Light | Red light means working, and green light means safe. | ||||
| Warranty | The whole machine is under warranty for two years, and the RF tube is for one year. | ||||
| Nova Plus | Nova | |
| Laser Tube | 60W RF Metal Tube (2000DPI 10,000 hour lifespan) | 60W Glass Tube 500DPI 2000-4000 hour lifespan) |
| Acceleration | 2.5G | 1G |
| Speed | 1200mm/s | 1000mm/s |
| Auto focus | Easier focusing, suitable for transparent acrylic, with auto-focusing capability anywhere. | Not suitable for transparent acrylic, with a fixed focusing area. |
| Camera | Standard | Optional |
| Cooling | Alr Coollng | Water Cooling |
| Material | Cut | Engrave |
|---|---|---|
| Basswood | √ | √ |
| Cherry Wood | √ | √ |
| Birch Ply | √ | √ |
| MDF | √ | √ |
| Acrylic | √ | √ |
| Glass | × | √ |
| Anodized Aluminum | × | √ |
| POM | √ | √ |
| Rubber | √ | √ |
| Cotton | √ | √ |
| Denim | √ | √ |
| Canvas | √ | √ |
| Material | Cut | Engrave |
|---|---|---|
| Leather | √ | √ |
| Marble | × | √ |
| Ceramic | × | √ |
| Cardboard | √ | √ |
| Paper | √ | √ |
| EVA FOAM | √ | √ |
| Cork | √ | √ |
| Bamboo | √ | √ |
| Denim | √ | √ |
| Coated Metals | × | √ |
